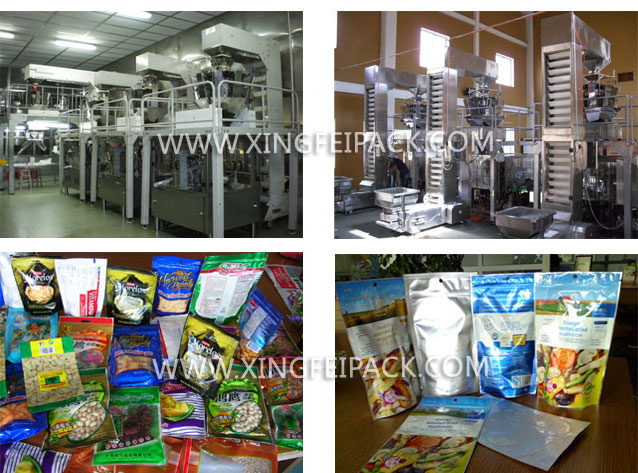

I. Machine list in this system
-Z type lifter with Vibrating feeder
-10 head weigher
-Automatic premade bag filling and sealing machine
- platform
II. Feature: The system will finish all the process automatically: feeding, dosing, filling, sealing, date coding. It has the advantages of high accurate weighting, high efficiency without broken material.
III. Range ：The machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, Pistachio nuts,fruit chips like apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.
IV.Technical Parameter
|
包装能力 Capacity |
30-50 bag/min, |
|
袋子尺寸 Bag Size |
(L)100-300mm (W)100-200 mm |
|
包装重量 Filling weight |
Up to1000 g/bag (max) |
|
封口方式 Bag sealing |
热封 Sealing by heat and pressure |
|
电源 Power supply |
AC380V±10%，3-phase 50Hz |
|
使用功率 Power Consumption |
2.0KW |
|
压缩空气 Air Consumption |
0.2m3/min at 5-8 kgf/cm2 |
|
机器重量 Machine Weight |
1200kg |
|
机器尺寸 Dimension |
W×L×H 1140×1500×1560mm |
