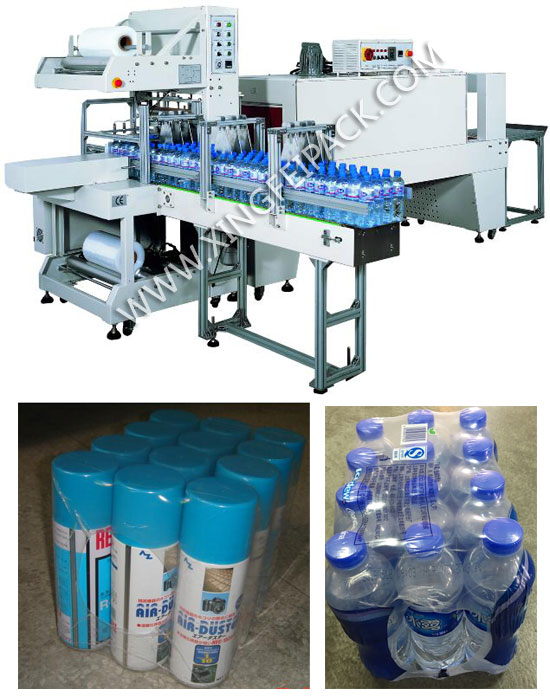

XF-ZS Automatic sleeve shrink packing machine

I. Application:
The machine will finish the process of piling, wrapping, shrinking and cooling automatically.
The machine adopts the Germanyadvanced technology which is based on European standard.
The electrical units are from famous companies around the world, such as OMRON, SICK, NORGEN, MITSUBISHI and so on.
The packed products are neat compact and suitable for long distance and long time transport.
The packages can be of 6 bottles, 9 bottles, 12 bottles, 15 bottles, 18 bottles, 20 bottles and 24 bottles. Also the packages can be with tray or without tray.
It is suitable for products like pop-tops, plastic bottles, glass bottles and so on.
The machine can provide counting device, full-column automatic shrink tunnel.

II.Technical Parameter:

Name

Sealing machine

Shrink tunnel

Horizontal height and length of infeed conveyor

850±50mm/1500mm

850±50mm

Max Packing Dimension

L700×W300×H300

L(unlimited)×W600×H400

Packing Speed

10-18pcs/min

0-12m/miute

Power supply

3φ/220V/380V 50/60Hz 2KW

3φ/220V/380V 50/60Hz 20KW

Air Tolerance

0.6Mpa(6Kg/c㎡)

Sealing Time and Temperature

0.5-1.5S/0-250℃

0-250℃

Film Width/Thickness

MA×650mm/0.04-0.12mm

Dimension

L1500×W2700×H2000

L3000×W970×H1400

Weight

465kg

550kg
